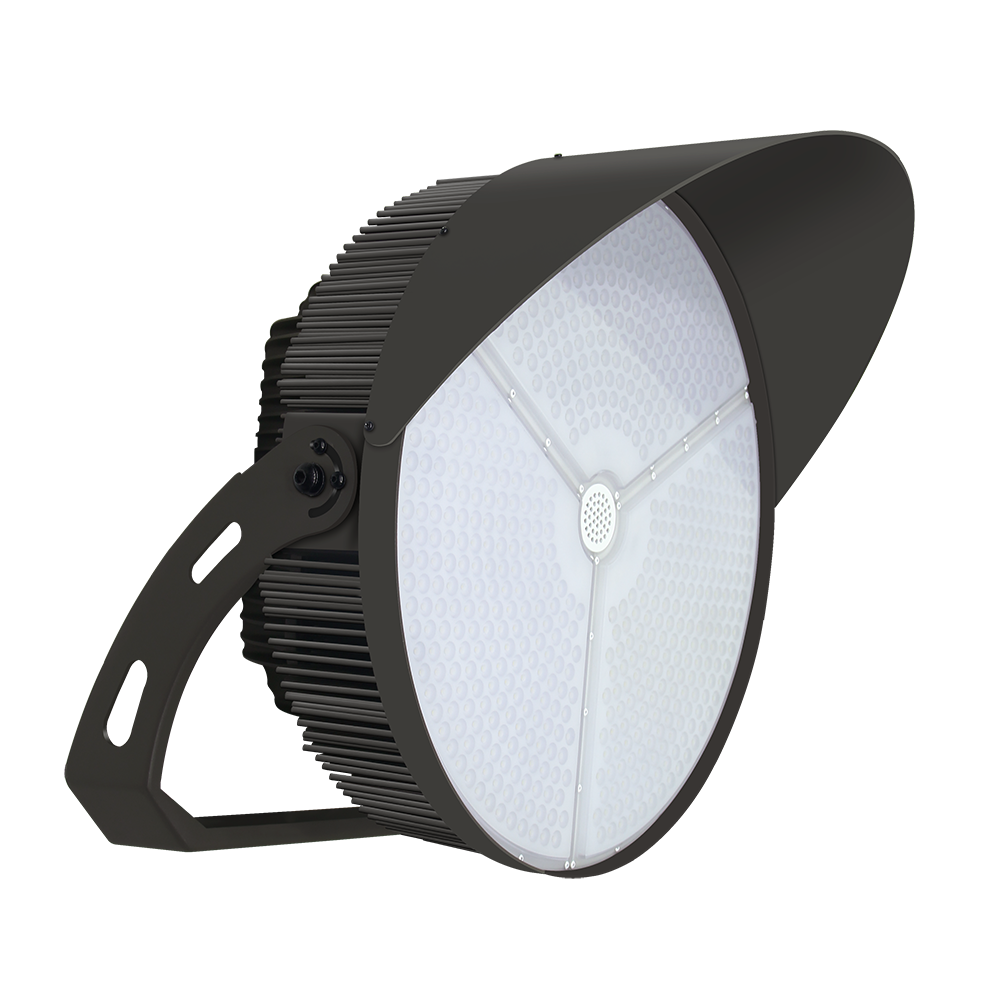

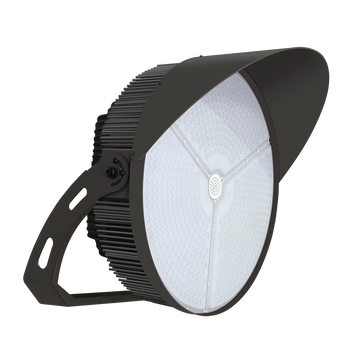

LED Stadium Flood Fixture – 600W / 750W

LED Stadium Flood Fixture – 600W / 750W

Regular price $0.00
Sale price $0.00 Regular price
Unit price
Product description
Additional Information
Product description

WATT-MAN’s High Mast Flood Lighting is designed to be low-profile, lightweight, and reliable. This fixture comes in a 600W & 750W option with a lumen output of +110 LM/W. High CRI and TLCI is available to meet HD TV broadcasting requirements. These fixtures can be specified for a variety of beam angles, 20 Degree up to 120 Degree, while also offering Type III and 60/120 Degree beam configurations.

Widely used for stadiums, tennis facilities, tracks, horse arenas, and large recreation fields. Also, for airports, shipping terminals, prison yards, and highway intersections.

v = voltage
cc = CCT
f = finish
d = beam angle/light distribution
L = LED brand (CREE or Philips)
o = options, including remote driver, dimming, app control, photocell
***For example, HM500L57B64P is a 500W High Mast Light, 100-277V, 5700K CCT, Bronze Finish, 60 Degree Beam Angle, Philips LEDs, with Photocell Option.

Applications

  • High Mast
  • High bay / Low bay
                                  Additional Information

                                  CCT
                                  3000K / 4000K / 5000K / 5700K / 6500K

                                  Dimming Options
                                  0-10 Dimming Available

                                  Wattage
                                  600W / 750W

                                  Lumens
                                  81,700lm / 87,500lm

                                  Voltage
                                  120V-277V / 347V-480V

                                  Power Factor
                                  >0.95

                                  CRI
                                  >70Ra or >90Ra

                                  IP Rating
                                  IP67

                                  Operating Temp
                                  -40 degrees – 104 degrees

                                  Size
                                  18.78" x 13.66" M.O.L.

                                  Weight
                                  43lbs

                                  Certificates
                                  UL

                                  Warranty
                                  7 Year Warranty for 120/277V / 5 Year Warranty for 347/480V
